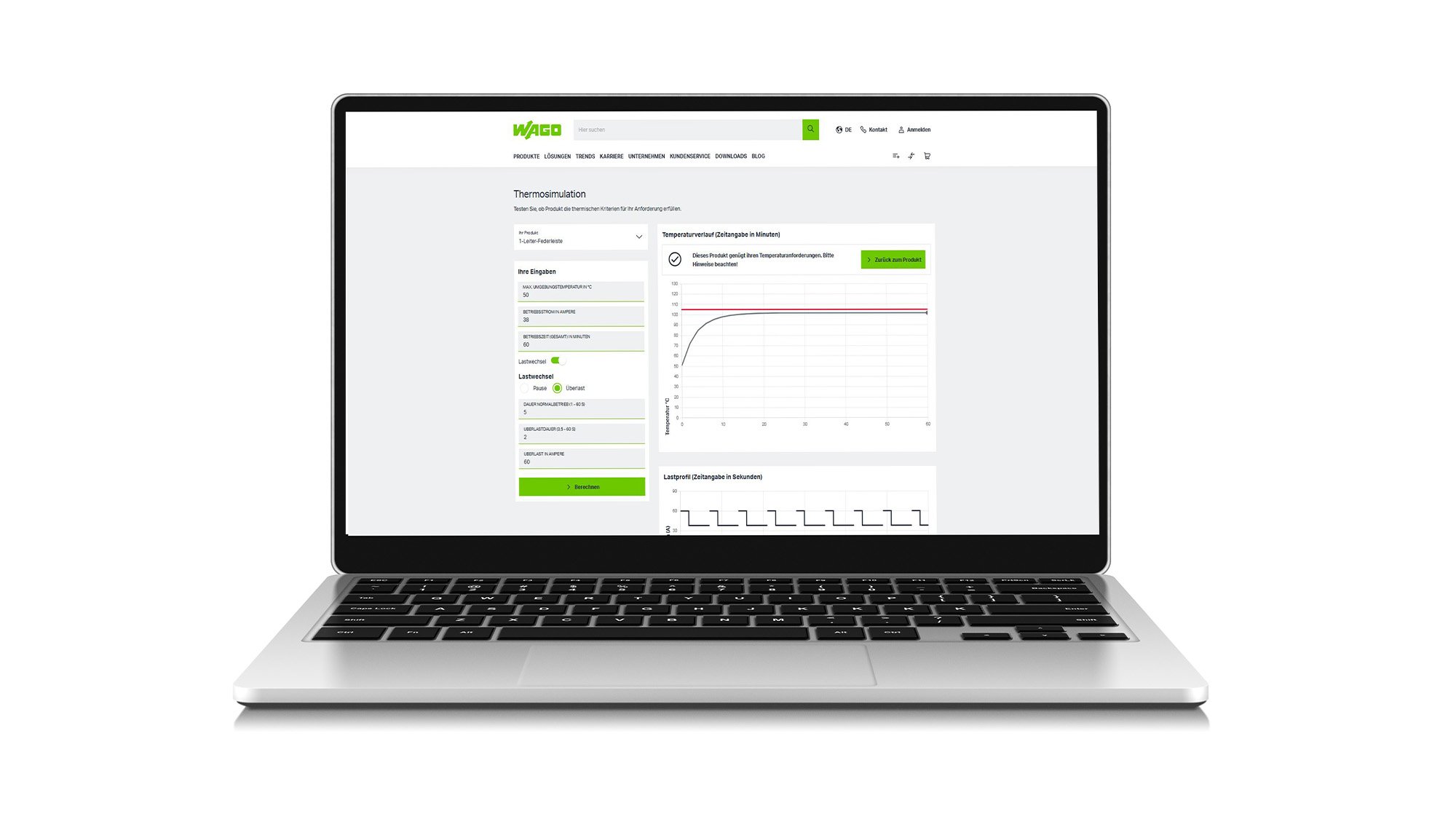

WAGO Thermal Simulation Tool With the WAGO Thermal Simulation Tool, you can simulate cyclic load profiles and ambient temperatures – quickly and without any testing effort on your part. The tool shows you the component temperature setting and an initial assessment.

Benefits:

• Test the individual load profile and ambient temperature
• Fast results without simulation effort on your part

The 2606 and 2616 Series PCB Terminal Blocks now offer a 30° conductor connection option, in addition to the existing 0° and 90° orientations. These terminal blocks maintain the same technical characteristics as their 0° and 90° counterparts and share an identical footprint, allowing for flexible interchangeability in PCB designs. They are ideal for applications such as wallboxes and photovoltaic systems.

Powerful and flexible for medium to large applications: The WAGO PFC 300 Controller boasts fast data processing, 2 GB of RAM and a 64-bit dual-core processor – ideal for demanding tasks! The PFC300 makes programming, control and visualization seamless – even across various industries.

The Everyday Digital Helper for Electrical Professionals

WAGO is expanding its modular building automation system, consisting of engineering software, application solutions and automation hardware, to include a full-scale management and control unit and integrating it into the new WAGO Building Ecosystem. Above all, building operators benefit from the new building management, energy management and environmental reporting functions.

We've grown our range of PCB terminal blocks for signal and power levels. Now available are terminal blocks with cross-sections up to 1.5 mm² featuring Push-in CAGE CLAMP® and push-buttons, as well as options for cross-sections up to 2.5 mm² with levers, push-buttons and Push-in CAGE CLAMP®. In addition, the 2624 and 2626 Series are now available with reflow capability.

WAGO's MULTI CONNECTION SYSTEM for pluggable PCB connections has expanded. Discover the new 1-conductor male header with levers (5 mm pin spacing) and the 1-conductor female connector with levers (7.5 mm pin spacing).

MCS MIDI HV Pluggable PCB Connectors, 7.5 mm pin spacing, UL-approved, for up to 600 V

The WINSTA® connector system from WAGO is primarily used in buildings with suspended ceilings or hollow walls. In order to not only mount detectors and sensors in a particularly stable manner, but also to quickly and efficiently integrate them into the system, WAGO now offers a suitable mounting plate. This is already equipped at the factory with a suitable interface for 2-pole WINSTA® MIDI Series connectors. The plugs and sockets can thus be easily attached via snap-in frames. The large-area hole contour of the mounting plate allows easy mounting of the base plate of the device. At the same time, the mounting plate increases strength and stability.

The WAGO Gelbox is a small, compact box filled with silicone-free gel. The Gelbox is available in nine sizes and provides IPX8 moisture protection for WAGO’s 2273 Series PUSH WIRE® Connectors for Junction Boxes, as well as WAGO’s 221 Series Splicing Connectors and Inline Splicing Connectors with levers.

The digital think tank for WAGO accessories: a collaborative platform; a community for tinkerers, professional developers and WAGO fans

In the event of short-term power outages, WAGO's Uninterruptible Power Supplies (UPS) bridge instabilities and keep your system running safely. For longer outages, critical processes can be safely maintained using our UPS solutions to prevent unwanted impacts and data loss.

Whether in buildings or directly in machinery, when active primary conductors should not be interrupted, WAGO's split-core current transformers are the solution. The portfolio is expanding with 19 new split-core current transformers featuring direct connection technology and short-circuit jumpers.

The WAGO Power Supply Base, equipped with proven Push-in CAGE CLAMP^® connection technology, provides essential functionalities during operation while ensuring high cost efficiency. The new devices feature fast, reliable, tool-free connections and deliver exceptional efficiency.

Key Benefits:

• Compact design with a robust metal housing
• Front-entry wiring with Push-in CAGE CLAMP^® connection technology
• Wide operating temperature range from -30 °C to +70 °C

WAGO Electronic Circuit Breakers (ECBs), Now with Communication Interface

To guarantee maximum system availability, power must be available for the corresponding system parts under all circumstances. Our WAGO Pro 2 Power Supplies with integrated MOSFET functionality let you set up redundant power supply systems, which can also be monitored continuously via communication modules. Modbus TCP, Modbus RTU, IO-Link and EtherNet/IPTM are available as protocols for communication with higher-level control systems.

Our single-channel ECBs give users maximum flexibility, both in the number of required channels and in the selection of individual functional properties of the ECB.

Eight different single-channel ECBs are available for selection. The channel width of just 6 mm also minimizes the space required.

WAGO’s Eco 2 family of power supplies is the ideal solution for applications where robust, economical, high-performance power supplies are required, but basic functionality suffices. With up to 95 % efficiency, this series is among the most efficient on the market.

The new Modbus TCP module allows direct connection of our MID energy meters without additional wiring effort, providing the perfect extension to the standard Modbus RTU interface.

WAGO’s new ECBs for 24 VDC, with four and eight channels, are used in all industries with sensors and actuators and other electrical loads in the 24 VDC range. These include the process and manufacturing industries, automobile production and power engineering. At 32 mm wide, the compact multi-channel modules are the slimmest ECBs available on the market.

In buildings, efficient shading control on the facade is fundamental: The new WAGO Sunblind Box (8DI/DO) helps easily operate building shading and, combined with control devices such as the WAGO Compact Controller 100, enables decentralized control of curtains. As the first product of the WAGO Building Ecosystem, it can also be parameterized quickly and easily via the WAGO App.

Not only up-to-date, but also everything at a glance – with the WAGO Navigator, users can find everything important for WAGO's engineering apps in one place. Thanks to an update, the WAGO Navigator’s new appearance now features a user interface that serves as the starting point for use of all installed WAGO software programs.

The PFC300 is designed for demanding applications in machine, process and building environments. Equipped with 2 GB of RAM and a 64-bit processor, it delivers high performance and reliability for large-scale operations.

• Programmable with CODESYS (IEC 61131-1) on a Linux^® operating system
• Comprehensive security functions
• Dual-core processing
• USB-C service port

Flexibility and openness are key drivers of automation. That’s why WAGO values strong partnerships – successful development of Industry 4.0 solutions can only be achieved through collaboration.

WAGO’s Basic Controller 100 makes engineering with CODESYS V3 possible. This enables 750 Series Compact Controllers, which are primarily designed for small-to-medium-sized automation applications, to work with the latest version of the IEC 61131-3 development tool.

With engineering software tailored to building automation, you can create solutions throughout the entire lifecycle of your building with an efficient, integrated approach. You have the option of setting up all your projects on a Web interface.
