Instructions 19 February 2021
Lighting with a Single DALI Module

Description

A DALI Master Module connects up to 64 electronic control gears and 16 multi-sensors. When setting up a new system, it is recommended to assign a maximum of 66% of the available subscriber slots.

Using the DALI Configurator, DALI lights can be grouped in any combination in up to 16 groups and scenes. The DALI Multi-Master Module also offers 16 additional virtual groups on the DALI bus. DALI ECGs possess one single address, which is conveniently assigned via the DALI Configurator (free WAGO plug-in). The configurator is available as a stand-alone Windows application or for use with WAGO-I/O-CHECK software.

Fieldbus nodes are programmed via WAGO-I/O-PRO software. WAGO provides a comprehensive IEC-61131-3 library of function blocks, simplifying the creation of complex lighting applications. Alternatively, an “Easy Mode” allows lighting functions to be readily controlled without any complicated PLC programming.

Two options are available to supply the DALI Multi-Master Module:

  • In the example shown here, the 753-620 Supply Module is used to convert 24 VDC into 18 VDC.
  • With two or more Multi-Master Modules, the 787-1007 Power Supply converts 230 VAC into 18 VDC.

Parts List

1. 2002-1301, 2002-1304, 2002-1307, 2002-1392
2. 787-712
3. 249-116
4. 750-880
5. 753-620
6. 753-647
7. 750-600
8. 2851-8303

Product Overview

3-conductor through terminal block; 2.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; gray

Item no.: 2002-1301

3-conductor through terminal block ; 2.5 mm² ; suitable for Ex e II applications ; ...

{ "id": "2002-1301", "name": "2002-1301", "nameEn": "2002-1301", "listPosition": "1", "listType": "product-slider" }
3-conductor through terminal block; 2.5 mm²; for Ex e II and Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; blue

Item no.: 2002-1304

3-conductor through terminal block ; 2.5 mm² ; for Ex e II and Ex i applications ; ...

{ "id": "2002-1304", "name": "2002-1304", "nameEn": "2002-1304", "listPosition": "2", "listType": "product-slider" }
3-conductor ground terminal block; 2.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; green-yellow

Item no.: 2002-1307

3-conductor ground terminal block ; 2.5 mm² ; suitable for Ex e II applications ; ...

{ "id": "2002-1307", "name": "2002-1307", "nameEn": "2002-1307", "listPosition": "3", "listType": "product-slider" }
End and intermediate plate; 0.8 mm thick; orange

Item no.: 2002-1392

End and intermediate plate ; 0.8 mm thick ; orange

{ "id": "2002-1392", "name": "2002-1392", "nameEn": "2002-1392", "listPosition": "4", "listType": "product-slider" }
Power supply; Eco; 1-phase; 24 VDC output voltage; 2.5 A output current; DC-OK LED; 4,00 mm²

Item no.: 787-712

Power supply ; Eco ; 1-phase ; 24 VDC output voltage ; 2.5 A output current ; DC-OK ...

{ "id": "787-712", "name": "787-712", "nameEn": "787-712", "listPosition": "5", "listType": "product-slider" }
Screwless end stop; 6 mm wide; for DIN-rail 35 x 15 and 35 x 7.5; gray

Item no.: 249-116

Screwless end stop ; 6 mm wide ; for DIN-rail 35 x 15 and 35 x 7.5 ; gray

{ "id": "249-116", "name": "249-116", "nameEn": "249-116", "listPosition": "6", "listType": "product-slider" }
Controller ETHERNET; 3rd Generation; SD Card Slot

Item no.: 750-880

Controller ETHERNET ; 3rd Generation ; SD Card Slot

{ "id": "750-880", "name": "750-880", "nameEn": "750-880", "listPosition": "7", "listType": "product-slider" }

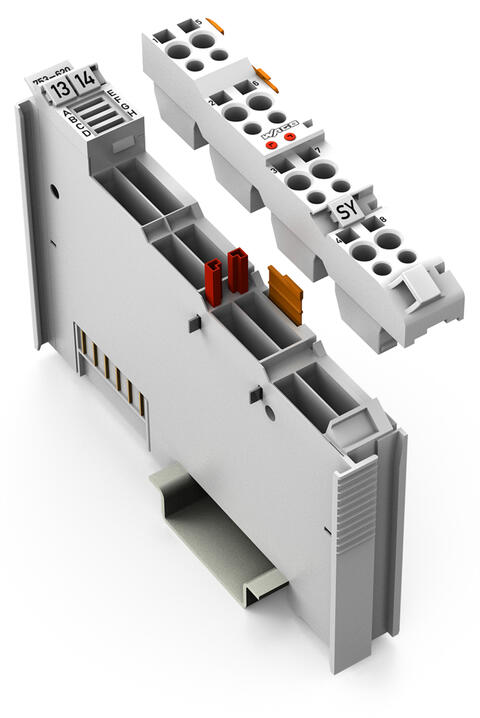

DALI Multi-Master DC/DC Converter

Item no.: 753-620

DALI Multi-Master DC/DC Converter

{ "id": "753-620", "name": "753-620", "nameEn": "753-620", "listPosition": "8", "listType": "product-slider" }
DALI Multi-Master

Item no.: 753-647

DALI Multi-Master

{ "id": "753-647", "name": "753-647", "nameEn": "753-647", "listPosition": "9", "listType": "product-slider" }
End Module

Item no.: 750-600

End Module

{ "id": "750-600", "name": "750-600", "nameEn": "750-600", "listPosition": "10", "listType": "product-slider" }
DALI MSensor 02 5DPI 41rs (Surface Installation)

Item no.: 2851-8303

DALI MSensor 02 5DPI 41rs (Surface Installation)

{ "id": "2851-8303", "name": "2851-8303", "nameEn": "2851-8303", "listPosition": "11", "listType": "product-slider" }

More about DALI-2

The Standard in Lighting Control

Lighting control with DALI – the “Digital Addressable Lighting Interface” (DALI) is a communication protocol for building lighting applications and is used for communication between lighting control devices, such as electronic control gears, brightness sensors or motion detectors.
