Linect® – the Connection System for Lighting Installation

The modern connection system for lighting installation has a name – Linect®. Lights with a Linect® interface provide connections for both conventional field-wiring terminal blocks and pluggable connectors – regardless of the manufacturer. Modern, pluggable electrical installation with Linect® enables fast and easy installation of recessed luminaires with any pluggable connector systems.

Linect® system features:

  • Plug-and-play connections for fast installation of Linect® Lights
  • Compatible with all types of connections: conventional and pluggable
  • Assembly is just as fast as disassembly – even during operation

Overview of Linect®

Modern Lights Need Modern, Pluggable Connections

The open interface of the Linect® connection system provides a host of advantages: greater freedom for planning and enhanced planning security for projects using compatible Linect® components – from project conception and bidding to fast installation.

Advantages of Linect®

  • Freely choose an installation system (conventional or pluggable) thanks to compatibility with all manufacturers
  • Free choice of Linect® lights, regardless of their connection type or make
  • Simplified bidding thanks to separate bids for lighting and cable installation

Three Connection Types

Connection option 1

Pluggable Installation with WINSTA®

Connection option 2

Conventional installation via pluggable lighting connection

Connection option 3

Conventional installation directly at the lighting connector

Linect® Universal Light Connection System – Simplifies Lighting Manufacturing Processes

The Linect® connection system reduces the diversity required for readily available plug & play lights.

What that means for you:

  • Simplifies purchasing and manufacturing processes using fewer components
  • Reduces storage costs
  • Improves deliverability

Universal field-wiring terminal block for Linect®

WAGO’s Linect® 294 Series Lighting Connectors allow worldwide connection of luminaires via WINSTA® pluggable connectors or conventional wiring. For a conventional field connection, 2-, 3-, 4- and 5-pole connectors for solid, stranded and fine-stranded conductors up to 2.5 mm2 or 12 AWG (2.0 mm ∅) are available.

New Products

Practical Tip

Linect® products from WAGO

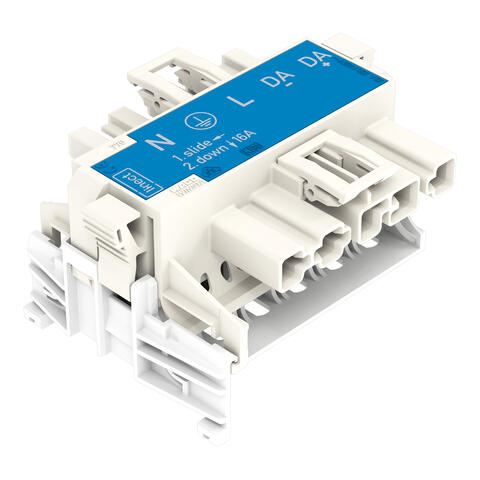

Linect® T-connector; 5-pole; Cod. I; 1 input; 2 outputs; blue

Item no.: 770-7105

Linect® T-connector ; 5-pole ; Cod. I ; 1 input ; 2 outputs ; blue

{ "id": "770-7105", "name": "770-7105", "nameEn": "770-7105", "listPosition": "1", "listType": "product-slider" }

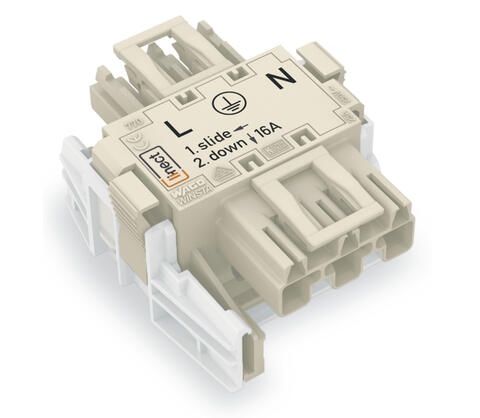

Linect® T-connector; 3-pole; Cod. A; 1 input; 2 outputs; white

Item no.: 770-6223

Linect® T-connector ; 3-pole ; Cod. A ; 1 input ; 2 outputs ; white

{ "id": "770-6223", "name": "770-6223", "nameEn": "770-6223", "listPosition": "2", "listType": "product-slider" }

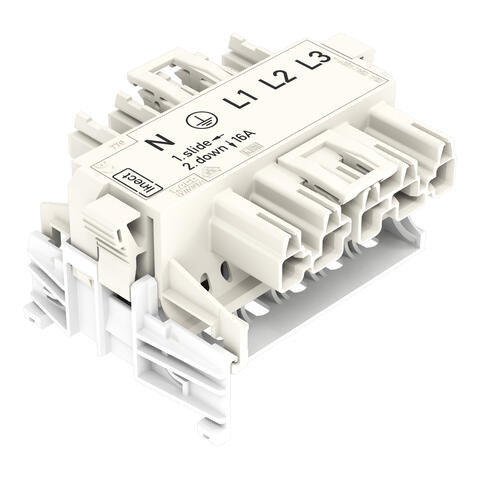

Linect® T-connector; 5-pole; Cod. A; 1 input; 2 outputs; white

Item no.: 770-6225

Linect® T-connector ; 5-pole ; Cod. A ; 1 input ; 2 outputs ; white

{ "id": "770-6225", "name": "770-6225", "nameEn": "770-6225", "listPosition": "3", "listType": "product-slider" }

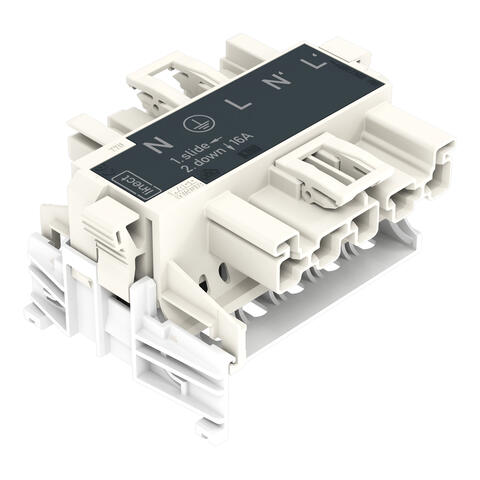

Linect® T-connector; 5-pole; Cod. L; 1 input; 2 outputs; white

Item no.: 770-7505

Linect® T-connector ; 5-pole ; Cod. L ; 1 input ; 2 outputs ; white

{ "id": "770-7505", "name": "770-7505", "nameEn": "770-7505", "listPosition": "4", "listType": "product-slider" }

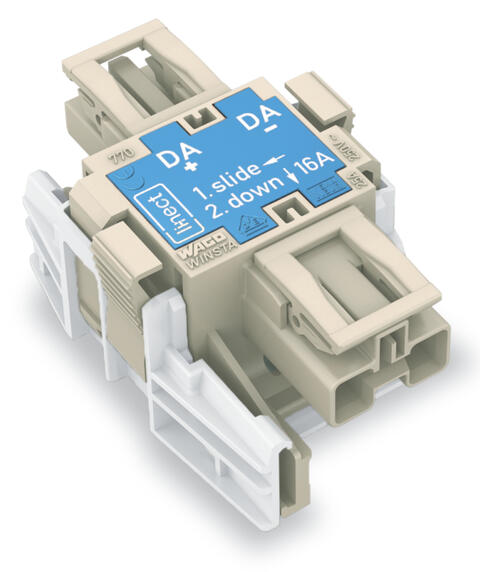

Linect® T-connector; 2-pole; Cod. I; 1 input; 2 outputs; white

Item no.: 770-7102

Linect® T-connector ; 2-pole ; Cod. I ; 1 input ; 2 outputs ; white

{ "id": "770-7102", "name": "770-7102", "nameEn": "770-7102", "listPosition": "5", "listType": "product-slider" }

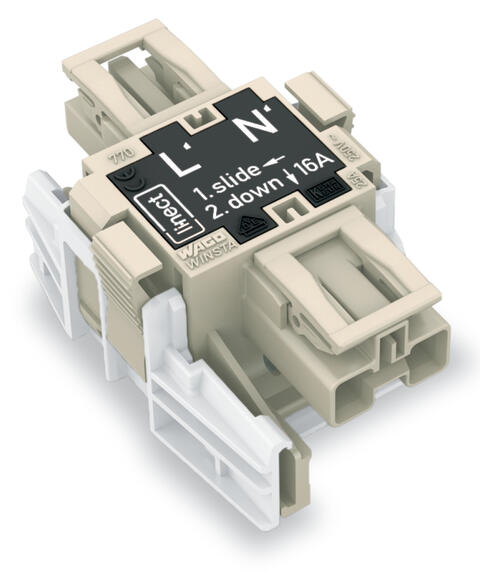

Linect® T-connector; 2-pole; Cod. L; 1 input; 2 outputs; white

Item no.: 770-7502

Linect® T-connector ; 2-pole ; Cod. L ; 1 input ; 2 outputs ; white

{ "id": "770-7502", "name": "770-7502", "nameEn": "770-7502", "listPosition": "6", "listType": "product-slider" }

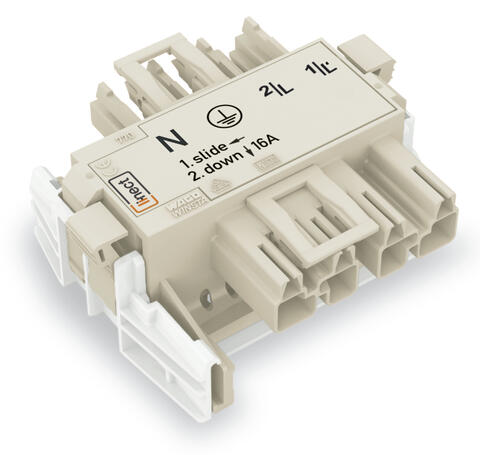

Linect® T-connector; 4-pole; Cod. A; 1 input; 2 outputs; white

Item no.: 770-6224

Linect® T-connector ; 4-pole ; Cod. A ; 1 input ; 2 outputs ; white

{ "id": "770-6224", "name": "770-6224", "nameEn": "770-6224", "listPosition": "7", "listType": "product-slider" }
