Surface Mount PCB Terminal Blocks

A compact and low-profile PCB connection is required in many electronics applications, particularly in luminaires for optical uniform light distribution, while minimizing shadowing. Surface mount PCB terminal blocks, with their combination of a flat design and wide application scope fully satisfy these demands.

Your benefits:

  • Push-in termination of solid or tin bonded conductors
  • Low profile minimizes on-board shadowing
  • Comes in tape-and-reel packaging for full integration into SMT soldering process
  • Lower costs via automated pick-and-place assembly
  • THR variants also available
Show product list

Product Family Overview

2086 Series – Easy Handling and Flexibility

Easy handling and versatility – all in a compact size. These are the features of the 2086 Series PCB Terminal Block with Push-in CAGE CLAMP® and a push-button.

  • Ideal for compact device connection, panel feedthrough and tight spaces
  • Push-in CAGE CLAMP® allows push-in termination of solid and fine-stranded conductors with ferrules from 24 to 16 AWG
  • SMD and THR variants available
  • Delivery in tape-and-reel packaging for full integration into SMT soldering process
Show product list
Learn more

2065 Series: Reduced to the Essentials

  • A reliable, repeatable alternative to wire soldering in a housing-less (bare contact) design
  • Easily wire with push-in termination, and remove wire with an operating tool
  • Low profile: 2.7 mm height
  • Conductor range: 24 – 18 AWG
  • Maximum conductor size, minimum installation space
Show Product List
Request a Sample

2059 Series: For the Smallest Sizes

  • Low profile: 2.7 mm height, 3 mm spacing
  • Conductor range: 26 – 20 AWG
  • Side-by-side assembly without pole loss
  • Besides standard wiring, several PCBs or LED modules can be easily assembled into a single string using board-to-board connection links
Show Product List

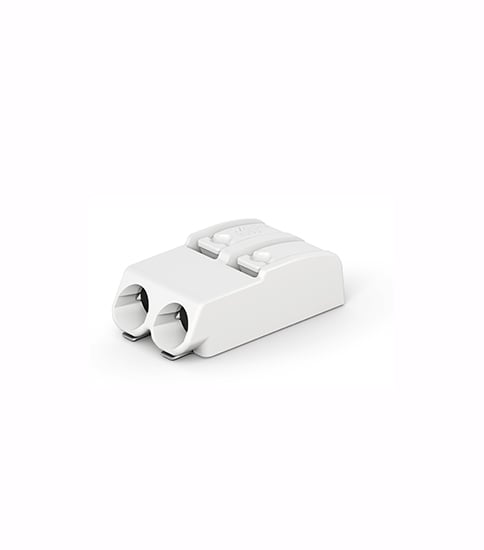

2060 Series: For the Broadest Range of Applications

  • Low profile: 4.5 mm height, 4 mm spacing
  • Conductor range: 24 – 18 AWG
  • Push-buttons simplify insertion/removal of all conductor types
  • Minimize labor and materials with board-to-board connection links
  • THR variant has solder pins, ideal for THR and wave soldering
  • 8 mm pin spacing variant provides higher rated voltages up to 600 V (UL) and 630 V (IEC)
Show Product List

2061 Series: For Higher Power Applications

  • Low profile: 5.6 mm height, 6 mm spacing
  • Conductor range: 20 - 16 AWG
  • Push-buttons simplify insertion/removal of all conductor types
  • Board-to-board connection links to minimize labor and materials
  • THR variant with solder pins for THR and wave soldering
Show Product List

2070 Series – Back-Side Wiring of LED Modules

WAGO’s all-new 2070 Series SMD PCB Terminal Blocks provide back-side wiring of LED modules, minimizing on-board LED shadowing and simplifying wiring. With the new 2070 Series, WAGO introduces the new SMD PCB Terminal Blocks for solid and fine-stranded conductors ranging from 24 to 18 AWG (0.2 to 0.75 mm2). The special feature: The new terminals blocks are designed for back-side wiring of LED modules.

  • For shifting wiring to the back of the LED modules
  • Low profile of just 0.433 inch (1.1 mm) on top of the PCB minimizes shadowing
  • Easy pick-and-place assembly and minimum shadowing thanks to optional cover
  • Optional marking of the clamping point helps prevent wiring errors
  • Clearance and creepage distances for use up to 500 V per EN 60598-1
  • Supports both manual and automated wiring
Show product list

2075 Series: For Vertical Wiring

  • Wiring performed from the back of the LED module simplifies luminaire manufacturing
  • Compact design provides uniform light distribution
  • An economical alternative to wire soldering in any industrial electronics application
  • Supports both manual and automated wiring systems
Show Product List
